Black Panther was one of the first satellite boxes to add things like DNLA and have easy access to the network and media sources

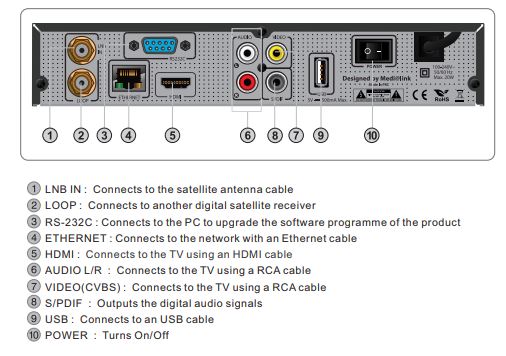

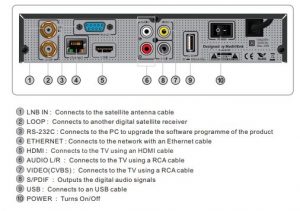

AUDIO / VIDEO / DATA INPUT/OUTPUT
HDMI 1 x HDMI 1.3
AUDIO OUTPUT 2 x RCA Cinch (L/R)
VIDEO(CVBS) OUTPUT 1 x RCA Cinch
DIGITAL AUDIO OUTPUT 1 x S/PDIF (Coaxial)
USB 2 x (USB 2.0 Host), Front & Rear
RS-232C 9 Pin D-Sub Socket Type (Max.115200bps)
INPUT VOLTAGE AC 100~240V, 50/60Hz
POWER SUPPLY
TYPE SMPS (Switching Mode Power Supply)
PROTECTION
Separate internal fuse
The input should be protected against lighting.
DIMENSION (W x H x D) 220 x 40 x 135 (mm)
PHYSICAL CHARACTERISTICS
NET WEIGHT Approx. 0.6Kg
OPERATING TEMPERATURE 0℃ to +45℃
STORAGE TEMPERATURE -10℃ to +70℃
