- MPEG-Fully DVB-S / DVB-S2 HD compliant
- Linux Embedded OS
- Conax Embedded Card Reader
- Endless possibilities with Plug-In support
- YouTube, SHOUTcast Radio, and Picasa Compatible
- Weather forecast & Rss Reader Functions
- S/PDIF for digital audio or Dolby Digital Bit-Stream output
- DiSEqC 1.0, 1.1, 1.2 and USALS
- Endless channels (TV and Radio) programmable
- Multilingual menu text support
- Channel list editing
- Favourite channel list editing
- True-color On-Screen Display (OSD)
- Full Picture In Graphic (PIG) function
- Electronic Program Guide (EPG) for on screen channel information
- Subtitle supported
- Teletext supported by software emulation
- Parental lock facility by channel and program event
- Program and Channel information transfer from receiver to receiver
- HDMI HD Video/Audio Output
- USB 2.0 Host
- LED Display for service information
- RTC (Real-Time-Clock)
- Time Shift
- Video Recording
- Recording one channel and Time Shifting another channel (optional)
- Full HD 1080p output via HDMI
- AVI, MKV, MPG, TS, WMA, WMV, M2TS, FLV, DAT, ASF, MP3 playback
- Software Upgrade support via USB, RS232 or Internet
- Message, FAQ and User Manual support
- Download files from FTP server
- SYSTEM RESOURCES
Main Processor: 450M Hz based CPU
Flash Memory: Nor flash: 8MB X 1 ; Nand flash:512MB X 1
DDR SDRAM: DDR2 128MB x 2Tuner/Front-end
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V, Horizontal: +18V/+19V, Current: Max. 500mA, Overload Protection
22KHz Tone: Frequency: 22±1KHz
DiSEqC Control: Amplitude: 0.6±0.2V, Version 1.0, 1.1 1.2, USALS Available
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps, Convolution Code Rate
1/2, 2/3, 3/4, 5/6,7/8,1/4,1/3,2/5,3/5,4/5,8/9,9/10 and AutoPOWER SUPPLY
Input Voltage: Free Voltage (100~240V AC, 50/60Hz)
Power Consumption: 20W MAX
- MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p,1920*1080i, 1920*1080p
Audio Decoding: MEPG-1 layer I/II, Mpeg2 layerII, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHzA/V & DATA INPUT/OUTPUT
TV-SCART: Video CVBS/RGB output, Audio L/R output
RCA A/V: Video CVBS output, Audio L/R output
S/PDIF: Coaxial, Digital Audio or Dolby Digital Bit Stream Output
RS-232C: Transfer rate 115.2Kbps, 9 pin D-sub Type
RJ-45: 10M/100M
USB: One USB 2.0 slot Compatible for Host
HDMI: VER1.2, Type APHYSICAL SPECIFICATION
Size[W*H*D]: 220mm*46mm*169mm
Net Weight: 1.0K
Watch satellite, use the box as a media centre – full remote control when watching HD movies . Stream video to other devices. Watch IPTV, WebTV.
Use a WiFi Dongle to connect to your network, or rj45 cable.

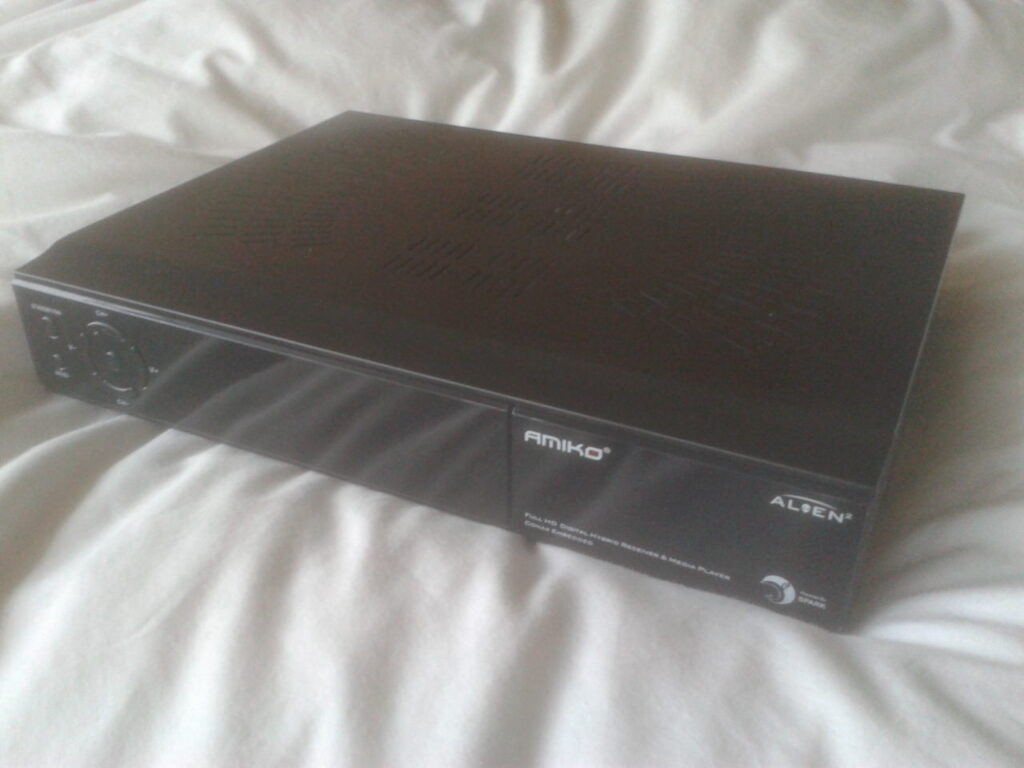

The Alien is the next generation full HD hybrid set-top box with dual-boot Spark and Enigma 2 Linux operating systems!
The Amiko SHD-8900 is the single tuner version of the Alien series and when running the Spark operating system provides HbbTV support, WebTV support, PVR Ready via external USB HDD (not included), multimedia playback, file sharing via local network, wired network support, wireless USB dongle support (optional extra – available separately), USB 3G modem support (optional extra – available separately), Wireless USB keyboard support (optional extra – available separately), Opera browser, Spark Portal, YouTube, YouPorn and SHOUTcast support – there really isn’t much this won’t do for you and that’s without mention of all the usual popular satellite receiver features you would expect!
Dual-boot Spark and Enigma2 Linux OS
STi chipset to give one of the best quality HD pictures around!
Good support for Addons
Softcams
Easy On Screen Setup
Download the manual

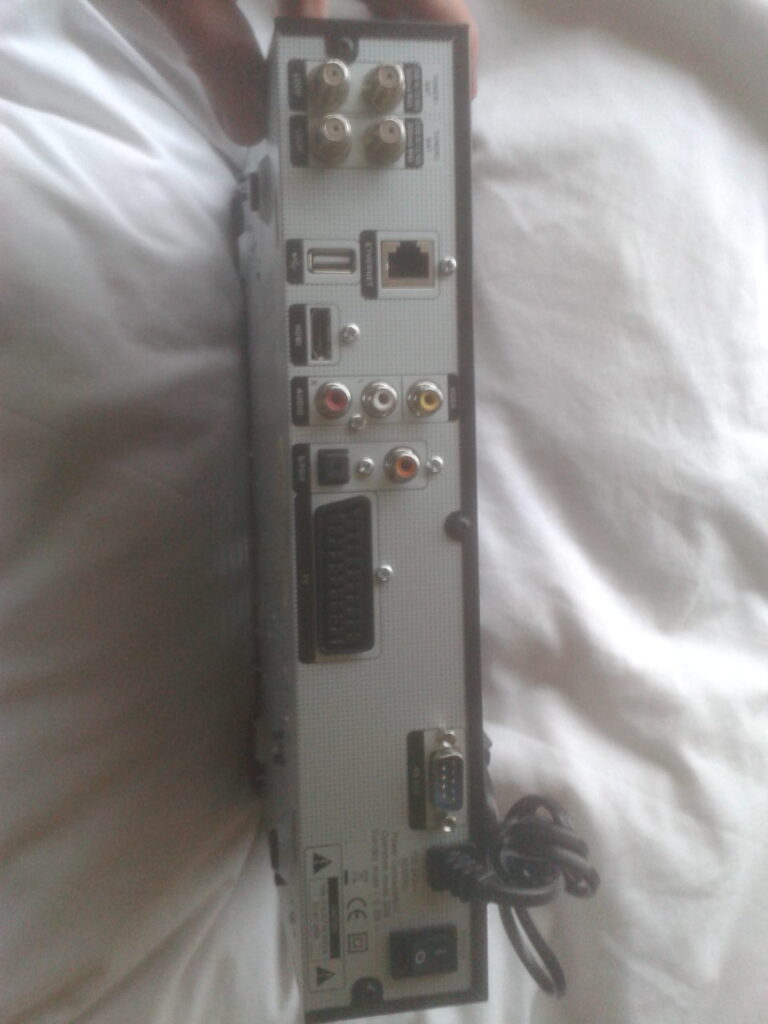

- Connections
- Dish IN
- Dish OUT
- Digital Audio
- Audio Left, Right
- Composite Video
- Scart
- USB
- HDMI
- Rj45 ethernet
- RS232
